HIGH-PERFORMANCE MINE VENTILATION

The last decade has seen the advent of a new type of mine ventilation, which uses widespread vent tubing systems that extend over hundred metres, if not kilometres. Such design calls for ductwork that can deliver air over such distances while minimizing vent line energy consumption.

In 2010, we developed the G+ SPEED AIR DUCT, an airtight, smooth-walled tubing that meets the new requirements of mine ventilation. Its heavy-duty plastic material, which contains a fire-retardant additive, makes the G+ SPEED AIR DUCT safe, light, flexible and durable.

Unmatched characteristics

The G+ SPEED AIR DUCT stands out from all other ventilation tubing because of its smooth walls and improved couplings. Made of HMW polyethylene, a low-friction material, the ducting opposes less resistance to airflow. The coupling mechanism maximizes the connexion airtightness and maintains both airflow and pressure over long distances.

Even better, the G+ SPEED AIR DUCT stays airtight even when its ends are assembled in a 5° angle.

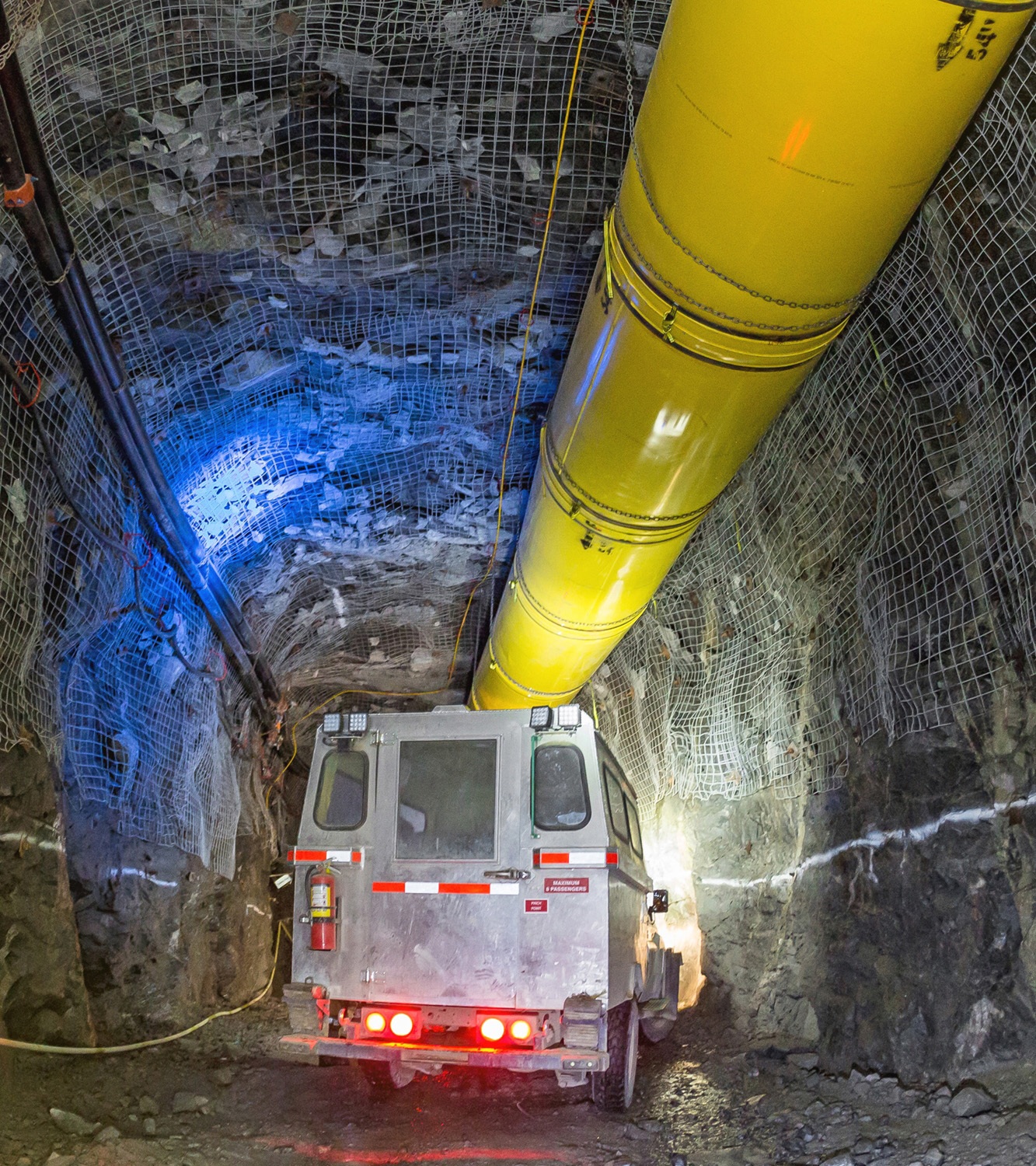

Picture: 54 in (1.37 m) vent line in Newmont-Goldcorp's Borden Gold Mine (Chapleau, Canada).

EFFICIENCY

Provide air further

Thanks to its airtightness and smooth walls, the G+ SPEED AIR DUCT conveys air farther than any other duct type, even if assembled at an angle.

Install smaller vent lines

Because of its performances, the G+ SPEED AIR DUCT delivers a given airflow in ductwork of reduced size. This not only improves ground clearance but can also lead to the design of smaller galleries where vent lines do not interfere with operations.

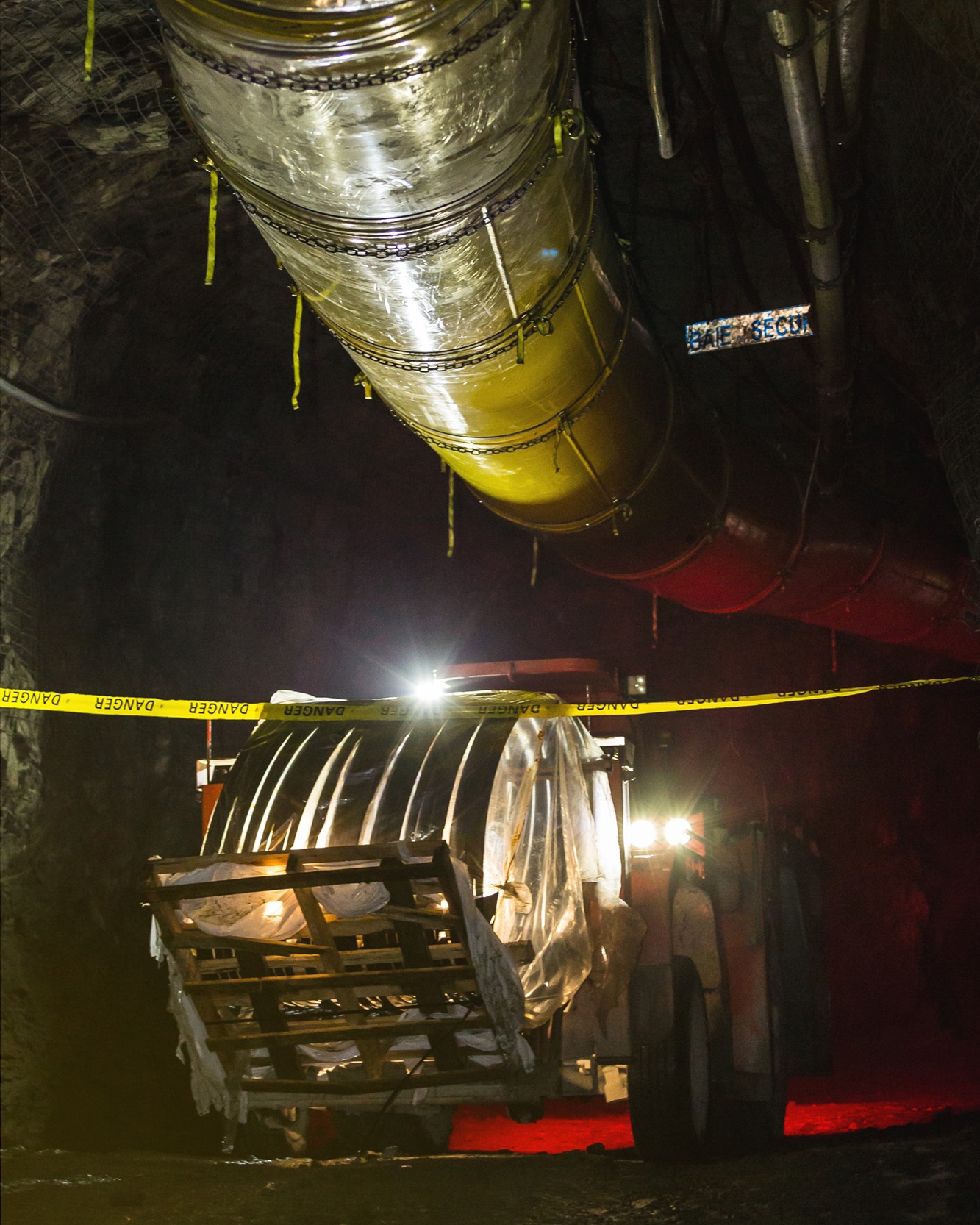

Picture: 48 in (1.22 m) ducts in Wesdome's Kiena mine (Val-d'Or, Québec). Assembly by CMAC-Thyssen Mining Group.

Reduce energy consumption

The G+ SPEED AIR DUCT features help moving air farther than any duct technologies while enabling more energy efficient vent lines.

  • First, because fans overcome much less static pressure, a direct result from the smooth duct walls.
  • Secondly, because the G+ SPEED AIR DUCT airtightness prevents the vent line depressurization.

Using the G+ SPEED AIR DUCT even leads to a reduced number of booster fans to power a vent line.

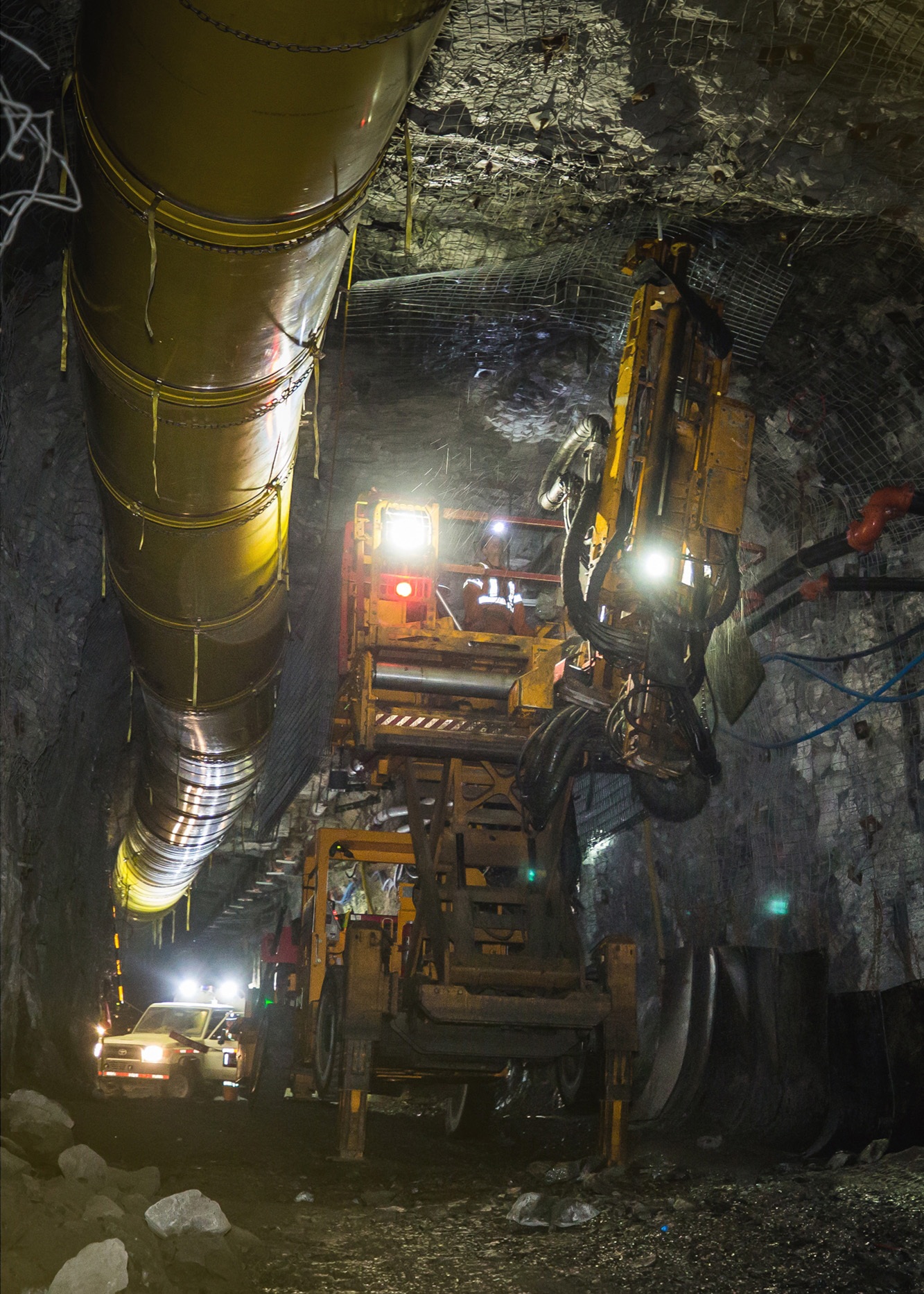

Picture: 54 in (1.37 m) vent line in Newmont-Goldcorp's Borden Gold Mine (Chapleau, Canada).

ADAPTABILITY

Follow gallery curves without accessories

Because of its unique coupling design, the G+ SPEED AIR DUCT can follow a drift curvature without loss of airtightness. No elbows are required for curvature radii equal to or greater than 95 ft (29 m): in other words, each duct can be put together in a 5° angle. Beside simplifying the underground accessory logistics, such assembly reduces the number of vent tubing connexions, thus decreasing leakage.

Change the vent line configuration

The G+ SPEED AIR DUCT can take either a round or oval profile with different steel collars. Doing so helps improving ground clearance in high traffic areas without the need of additional adapters.

SAFETY

The G + SPEED AIR DUCT, which contains a fire-retardant additive, complies with the CAN/CSA M427-M91 standard Fire-Performance Requirements for Ventilation Materials.

It also fulfills the 30 CFR 7.28 test for the flame resistance of rigid mining ventilation ducts, as required by the US Mine Safety and Health Administration (MSHA).

Furthermore, the G + SPEED AIR DUCT walls are corrosion-proof and impact-resistant. Moreover, under a large impact, the duct does not burst nor generates dangerous debris.

Improve logistics

Made of shape-memory plastic, the G + SPEED AIR DUCT is both lightweight and flexible, which eases both transport and handling, either on the surface or underground.

We compressed ducts in crates to maximize volume of shipment. We also offer different packaging methods according to our clients' needs.

Installation

The G + SPEED AIR DUCT is quick and easy to assemble thanks to its reduced weight and flexibility. Just reform the ducts and add the steel rings that give them an either round or oval profile.

For assembly, insert the male end of the G + SPEED AIR DUCT into the female end of the previous tubing, and then secure the joint with ratchet straps and screws.

Picture: 48 in (1.22m) vent line at the Wesdome Kiena Mine, Val-d'Or (Canada). Installation by the CMAC-Thyssen Mining Group.

REPAIR AND REUSE

The G+ SPEED AIR DUCT robustness increases significantly the vent line service life, which, in turn, leads to lesser production downtime to repair damaged duct.

Better, instead of replacing damaged tubing, it is possible to seal their leaks. Despite the repairs, the G+ SPEED AIR DUCT remains airtight and efficient. It is possible to reuse the ducts many times over their service life.

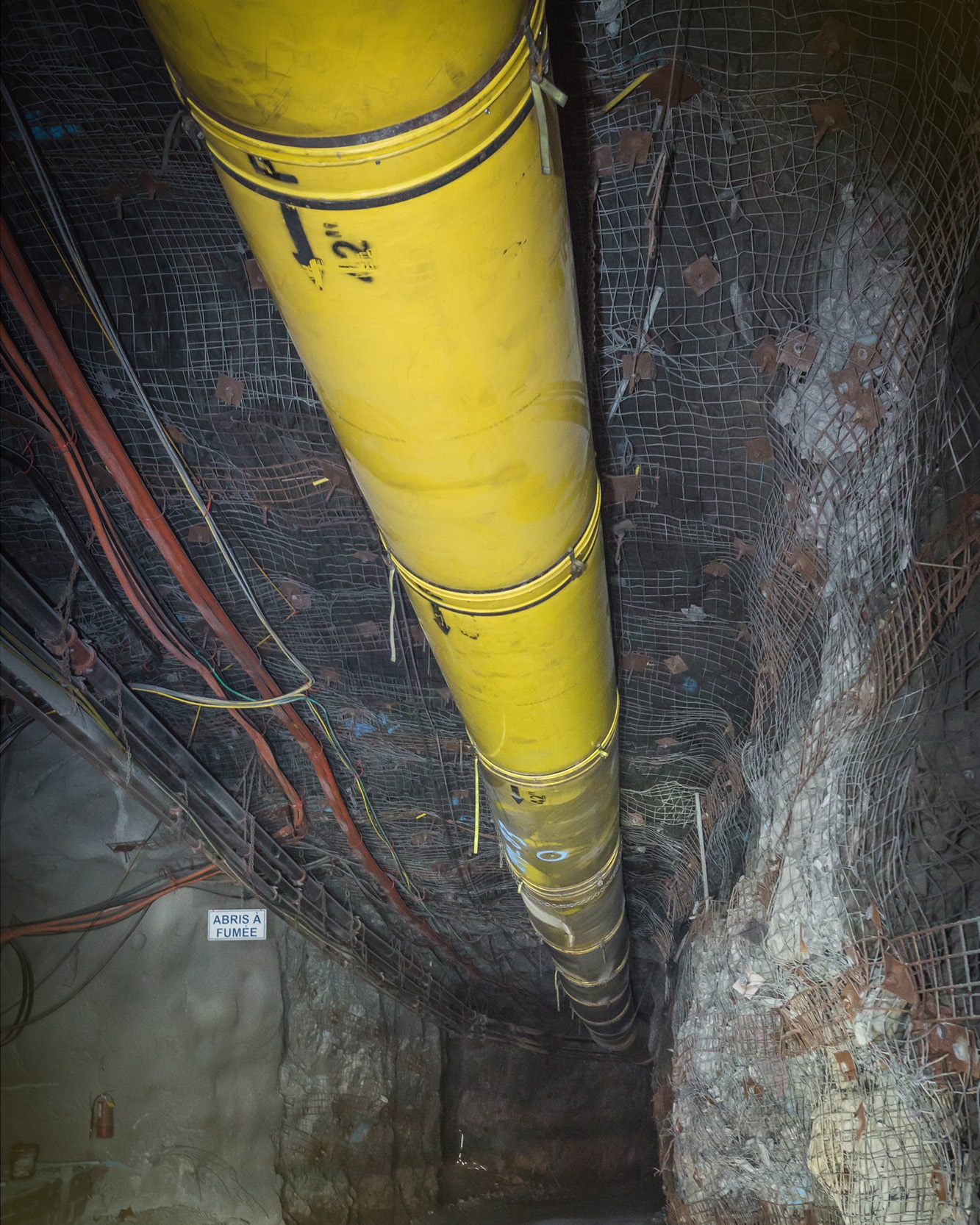

Picture: 48 in (1.22 m) vent line of more than 3 years old at the Agnico Eagle LaRonde mine (Preissac, Canada).

A complete product line

The G + SPEED AIR DUCT is more than duct: it is a variety of accessories enabling both versatile and high-performance mine ventilation. We rely on our extensive experience in custom plastic products manufacturing to design heavy-duty parts that can be reused without loss of efficiency.

ADDED VALUE

Choosing the G+ SPEED AIR DUCT also means benefiting from our expertise and our exceptional service.

We offer technical support to optimize G+ SPEED AIR DUCT vent line performance. We also provide on-site training for a quick and efficient installation. Finally, when vent lines are operational, we visit our clients to conduct performance surveys and further assist our clients, if need be.

In addition, we guarantee the availability of the G+ SPEED AIR DUCT in a timely manner and we adapt billing and delivery according to our client requirements.

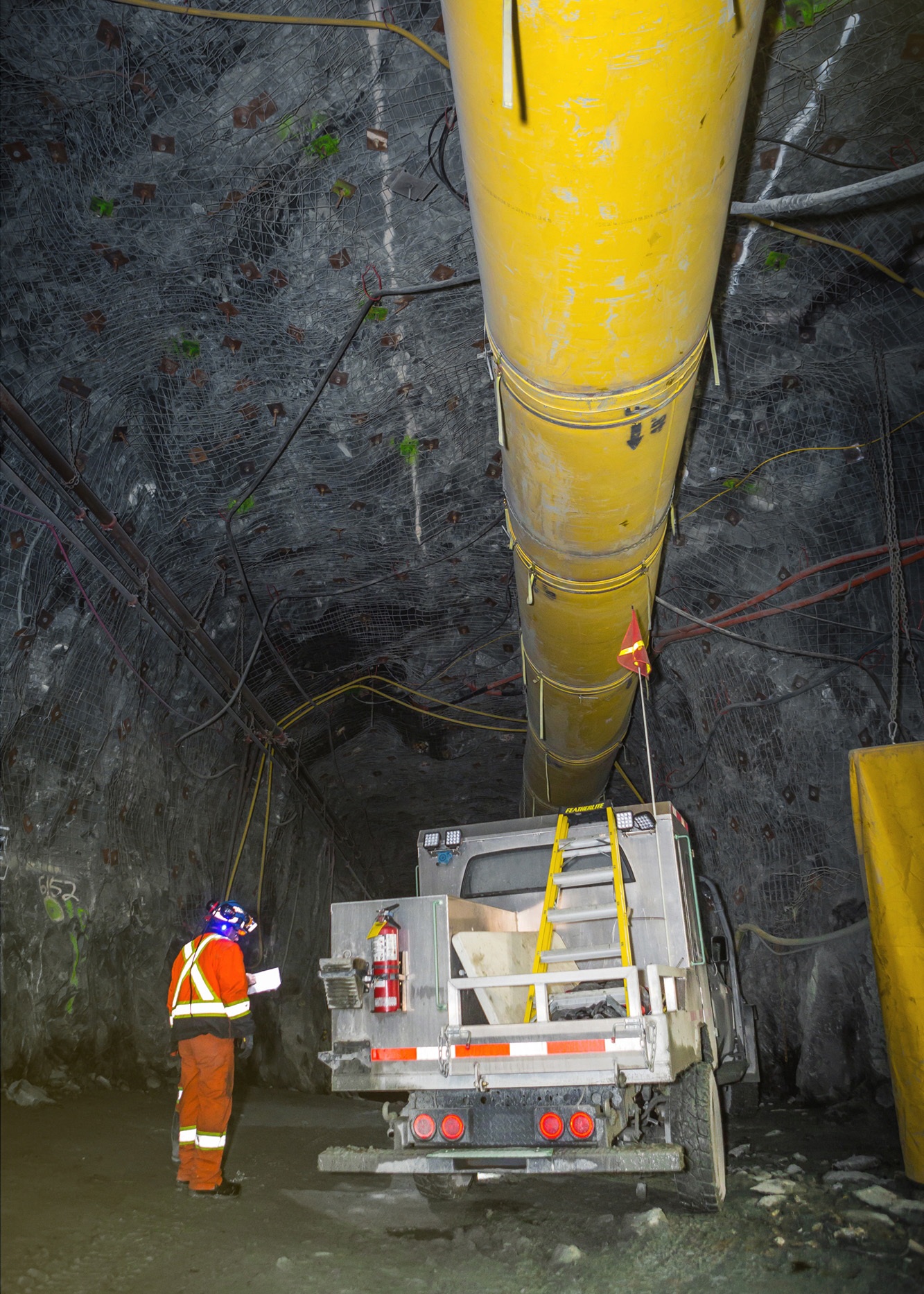

Picture: 48 in (1.22 m) vent line in Glencore Canada's Bracemac-McLeod mine (Matagami, Québec).
